FAAC 402 CBC Hydraulic Swing Gate Opener Kit with Regular Oil 115V (10ft / 900 lbs.) - FAAC 1044682.5
Details
FAAC 402 CBC Hydraulic Swing Gate Opener Kit with Regular Oil 115V (10ft / 900 lbs.) - FAAC 1044682.5
The FAAC 402 CBC 115V version is a space-efficient electric swing gate opener kit for gates up to 10 feet and 900 pounds. Perfect for residential applications, it delivers quiet, reliable movement using self-lubricating hydraulic technology. With pre-wired controls, a plug-in receiver, and remotes included, this gate opener kit with remotes offers a complete solution for private driveways or home entrances. Its low voltage setup makes it an excellent choice for a swing gate opener for residential driveway use.
Features:
- Hydraulic system tailored for compact gate installations
- Quiet operation with built-in self-lubrication
- Hydraulic locking in the closed position
- Efficient low voltage performance for residential gates
Technical Specs:
- Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Controller Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 2 A (115V)
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Leaf Max. Weight: 900 lb (410 Kg)
- Usage Frequency: 55 cycles/hour
- Operating Temp: 4 DegreesF to 131 DegreesF (-20 DegreesC to +55 DegreesC)
- Thermal Protection: 248 DegreesF (120 DegreesC)
- Protection Class: IP 55
- Dimensions: 37.7 x 3.3 x 2.4 in (959x85x61 mm)
Interested in turning this into a dual swing gate opener kit? Add the following part:
- 402 CBC Gate Operator Only (part number 1044682)
This product is a direct replacement for the FAAC 1044682.5+.
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 1044682.5 |
|---|---|
| Old SKU | FAAC 1044682.5+ |
| Manufacturer | FAAC International Inc. |

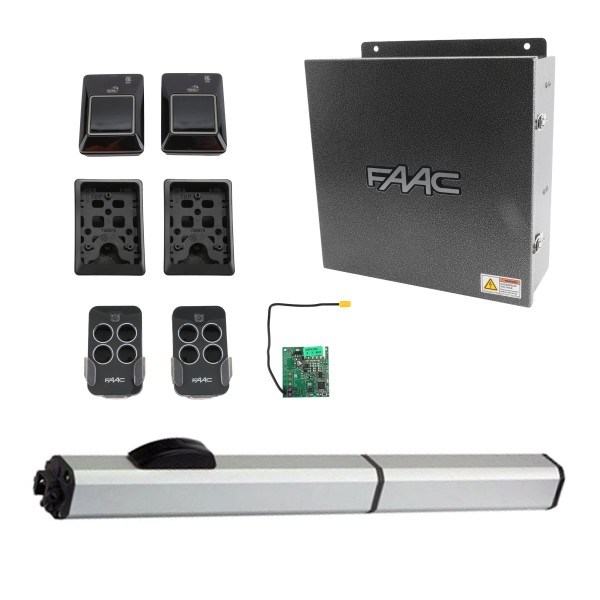

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Color | Painted Steel |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Regular Oil |
| Operator Series | 402 CBC |
