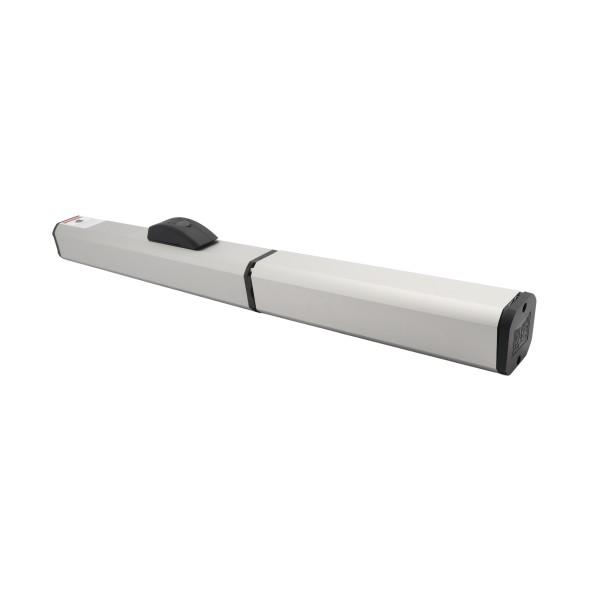

FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Arm with Arctic Oil 230V (16ft / 1300 lbs.) - FAAC 1042011677
Details
FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Arm with Arctic Oil 230V (16ft / 1300 lbs.) - FAAC 1042011677
Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 gate operator from FAAC features quiet operation, key protected manual release, and self lubrication.
Operates swing gates up to 16 feet long and 1,300 lbs. Includes gate operator only. Use to turn your single kit into a dual Primary/Secondary (bi-parting) kit, or use as a replacement operator.
Features:
- Wide and versatile range from residential to heavy industrial gates
- Hydraulic lock of the gate in open and/or closed positions
- Quiet operation
- Self lubricating for long life
- Key protected manual release
- Arctic oil
Technical Specs:
- Input Voltage For Gate Actuator: 220/230/240 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 1 A
- Motor Rotation Speed: 1400 r.p.m.
- Thrust Capacitor: 25 uF
- Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
- Thermal Protection on Motor: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
- Hydraulic Locking: Opening and closing
- Maximum Leaf Length: 16 ft (4.9 m)
- Maximum Leaf Weight: 1300 lb (589 Kg)
- Thrust Force: 1390 lbf (620 daN)
- Pump Flow Rate (l/min): 1
- Rod Extension Speed: 0.4 in/sec (1 cm/sec)
- Effective Rod Stroke: 10.25 in (260mm)
- Use Frequency (cycles per hour): 70
| SKU | 1042011677 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Color | Stainless Steel |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,300 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Operator Only |
| Oil Type | Arctic Oil |
| Mounting | Above Ground |
| Operator Series | 400 CBAC |
