FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (16ft / 1300 lbs.) - FAAC 1042011677.5

Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 gate operator from FAAC features quiet operation, key protected manual release, and self lubrication. Operates swing gates up to 16 feet long and 1,300 lbs.
Part Number: 1042011677.5

$2,176.74 each
OR

Details

FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (16ft / 1300 lbs.) - FAAC 1042011677.5

Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 gate operator from FAAC features quiet operation, key protected manual release, and self lubrication.

Operates swing gates up to 16 feet long and 1,300 lbs.

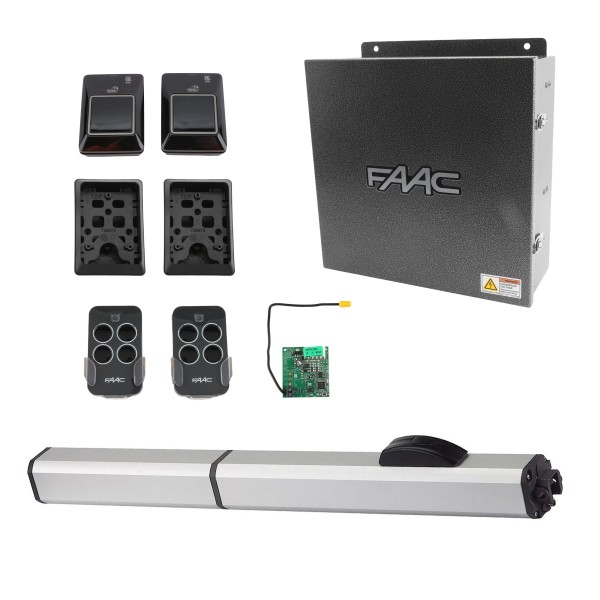

Kit Includes:

  • (1) 400 CBAC Operator
  • (1) 455D Control Board - 230V
  • (1) 14" x 16" Pre-Wired Enclosure
  • (1) Receiver - 433 RC Plug-In
  • (2) 4-Channel Transmitters - XT4 433 RC

Features:

  • Wide and versatile range from residential to heavy industrial gates
  • Hydraulic lock of the gate in open and/or closed positions
  • Quiet operation
  • Self lubricating for long life
  • Key protected manual release
  • Arctic oil

Technical Specs:

  • Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
  • Actuator Voltage: 220/230/240 AC (60 Hz, 1 Phase)
  • Power: 220 W
  • Current: 1 A
  • Motor Rotation Speed: 1400 r.p.m.
  • Thrust Capacitor: 25 uF
  • Operating Ambient Temperature: -33Â Degrees F to 165Â Degrees F (-36Â Degrees C to +75Â Degrees C)
  • Thermal Protection on Motor: 248 Â Degrees F (120 Â Degrees C)
  • Protection Class: IP 55
  • Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
  • Hydraulic Locking: Opening and closing
  • Maximum Leaf Length: 16 ft (4.9 m)
  • Maximum Leaf Weight: 1300 lb (589 Kg)
  • Thrust Force: 1390 lbf (620 daN)
  • Pump Flow Rate (l/min): 1
  • Rod Extension Speed: 0.4 in/sec (1 cm/sec)
  • Effective Rod Stroke: 10.25 in (260mm)
  • Use Frequency (cycles per hour): 70

Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:

Manual

Specification Sheet

Name FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (16ft / 1300 lbs.) - FAAC 1042011677.5
SKU 1042011677.5
Manufacturer FAAC International Inc.
Operator Type Swing
Gate Orientation Left-Hinged Gates, Right-Hinged Gates
Actuator Voltage 220/230/240 AC (60 Hz, 1 Phase)
Input Voltage 220/230/240 AC (60 Hz, 1 Phase)
Max Gate Length 16 ft.
Max Gate Weight 1,300 lbs.
Max Opening Angle 90 Degree Opening
Operator Kit Type Single Gate Opener Kit
Oil Type Arctic Oil
Mounting Linear Arm
Operator Series 400 CBAC
Price $2,176.74
