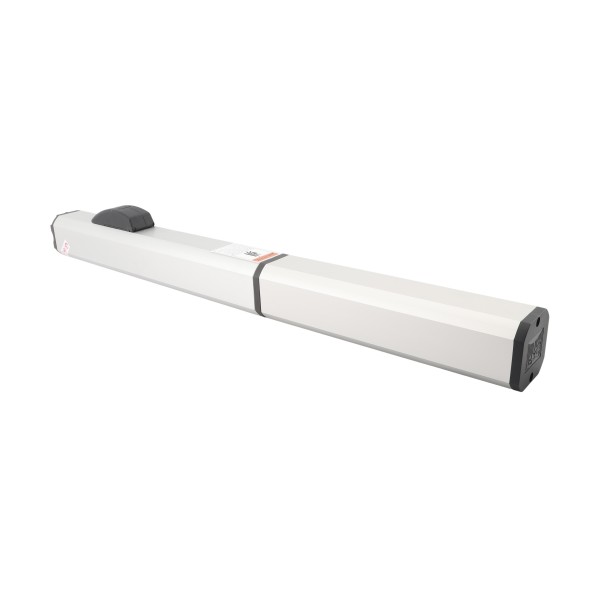

400 CBACR Rapid Hydraulic Swing Gate Operator Only with Arctic Oil (115V) - FAAC 1042071277
Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 CBACR gate operator from FAAC features quiet operation, key protected manual release, and self lubrication.
Operates swing gates up to 12 feet long and 900 lbs. Includes gate operator only. Use to turn your single kit into a dual master/slave (bi-parting) kit, or use as a replacement operator.
Features:
- Wide and versatile range from residential to heavy industrial gates
- Hydraulic lock of the gate in open and/or closed positions
- Quiet operation
- Self lubricating for long life
- Key protected manual release
- Arctic oil
Technical Specs:
- Input Voltage: 115 VAC (+10% -6%)
- Power: 220 W
- Current: 2 A
- Motor Rotation Speed: 1400 r.p.m.
- Thrust Capacitor: 25 uF
- Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
- Thermal Protection on Motor: 248 °F (120 °C)
- Protection Class: IP 55
- Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
- Hydraulic Locking: Opening and closing
- Maximum Leaf Length: 12 ft (3.6 m)
- Maximum Leaf Weight: 900 lb (408 Kg)
- Thrust Force: 1045 lbf (465 daN)
- Pump Flow Rate (l/min): 1.5
- Rod Extension Speed: 0.6 in/sec (1.5 cm/sec)
- Effective Rod Stroke: 10.25 in (260mm)
- Use Frequency (cycles per hour): 80
FAAC 400 Manual
FAAC 400 Brochure
Additional Information
| SKU | 1042071277 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Color | Stainless Steel |
| Max Leaf Length | 12 ft. |
| Max Leaf Weight | 900 lbs. |
| Operator Kit Type | Operator Only |
| Voltage | 115 VAC |
| Oil Type | Arctic Oil |
| Mounting | Above Ground |
| Operator Series | 400 CBACR |
