FAAC 400 CBACR Rapid Hydraulic Swing Gate Opener Kit with Arctic Oil 115V (12ft / 900 lbs.) - FAAC 1042071277.5
Details
FAAC 400 CBACR Rapid Hydraulic Swing Gate Opener Kit with Arctic Oil 115V (12ft / 900 lbs.) - FAAC 1042071277.5
Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 CBACR rapid gate operator from FAAC features quiet operation, key protected manual release, and self lubrication. Use it up to 80 times per hour.
Operates swing gates up to 12 feet long and 900 lbs.

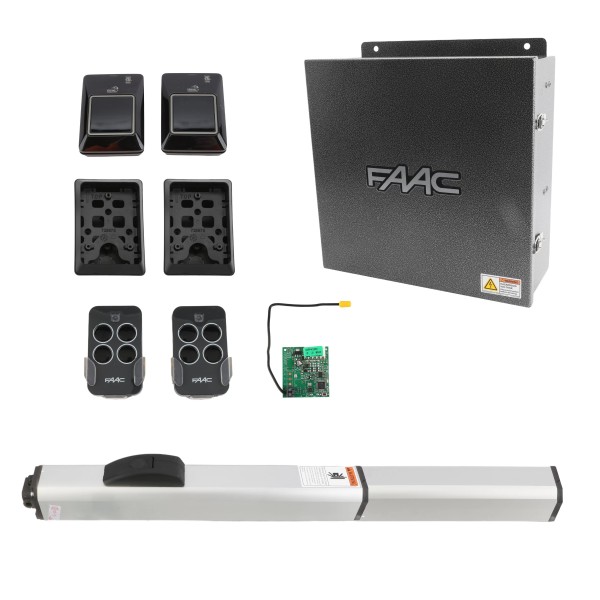

Kit Includes:
- (1) 400 CBACR Operator
- (1) 455D Control Board - 115V
- (1) 14" x 16" Pre-Wired Enclosure
- (1) Receiver - 433 RC Plug-In
- (2) 4-Channel Transmitters - XT4 433 RC
Features:
- Wide and versatile range from residential to heavy industrial gates
- Hydraulic lock of the gate in open and/or closed positions
- Quiet operation
- Self lubricating for long life
- Key protected manual release
- Arctic oil
Technical Specs:
- Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Controller Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 2 A
- Motor Rotation Speed: 1400 r.p.m.
- Thrust Capacitor: 25 uF
- Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
- Thermal Protection on Motor: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
- Hydraulic Locking: Opening and closing
- Maximum Leaf Length: 12 ft (3.6 m)
- Maximum Leaf Weight: 900 lb (408 Kg)
- Thrust Force: 1045 lbf (465 daN)
- Pump Flow Rate (l/min): 1.5
- Rod Extension Speed: 0.6 in/sec (1.5 cm/sec)
- Effective Rod Stroke: 10.25 in (260mm)
- Use Frequency (cycles per hour): 80
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 400 CBACR Rapid Gate Operator Only (part number 1042071277)
| SKU | 1042071277.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Max Gate Length | 12 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Arctic Oil |
| Mounting | Linear Arm |
| Operator Series | 400 CBACR |
