400 CBACR Rapid Hydraulic Swing Gate Operator Kit with Arctic Oil (230V) - FAAC 104207177.5

Availability: In stock

$1,891.68
OR

Quick Overview

Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 CBACR rapid gate operator from FAAC features quiet operation, key protected manual release, and self lubrication.

400 CBACR Rapid Swing Gate Operator Kit with Arctic Oil (230V) - FAAC 104207177.5

More Views

  • 400 CBACR Gate Operator
  • Enclosure
  • Control Board
  • Transmitter (penny shown for scale)

Details

Perfect for apartment, subdivision, commercial, condo, industrial and residential use, the 400 CBACR rapid gate operator from FAAC features quiet operation, key protected manual release, and self lubrication.

Operates swing gates up to 12 feet long and 900 lbs.

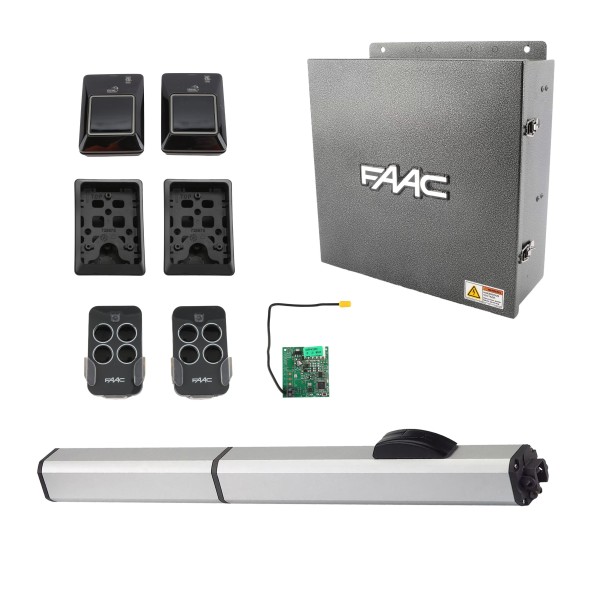

Kit Includes:

  • (1) 400 CBACR Operator
  • (1) 455D Control Board - 230V
  • (1) 14" x 16" Pre-Wired Enclosure
  • (1) Receiver - 433 RC Plug-In
  • (2) 4-Channel Transmitters - XT4 433 RC

Features:

  • Wide and versatile range from residential to heavy industrial gates
  • Hydraulic lock of the gate in open and/or closed positions
  • Quiet operation
  • Self lubricating for long life
  • Key protected manual release
  • Arctic oil

Technical Specs:

  • Input Voltage: 230 VAC (+6% -10%)
  • Power: 220 W
  • Current: 1 A
  • Motor Rotation Speed: 1400 r.p.m.
  • Thrust Capacitor: 25 uF
  • Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
  • Thermal Protection on Motor: 248 °F (120 °C)
  • Protection Class: IP 55
  • Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
  • Hydraulic Locking: Opening and closing
  • Maximum Leaf Length: 12 ft (3.6 m)
  • Maximum Leaf Weight: 900 lb (408 Kg)
  • Thrust Force: 1045 lbf (465 daN)
  • Pump Flow Rate (l/min): 1.5
  • Rod Extension Speed: 0.6 in/sec (1.5 cm/sec)
  • Effective Rod Stroke: 10.25 in (260mm)
  • Use Frequency (cycles per hour): 80

Interested in turning this single gate operator into a dual gate system? To make a master/slave (bi-parting) kit, add the following part:

FAAC 400 Manual

FAAC 400 Brochure

Additional Information

SKU 104207177.5
Manufacturer FAAC International Inc.
Operator Type Swing
Model Single Kit
Max Leaf Length 12 ft
Max Leaf Weight 900 lbs
Voltage 230 V
Oil Type Arctic Oil
Mounting Above Ground
Operator Series 400 CBACR
