FAAC 400 CBACR Rapid Hydraulic Swing Gate Opener Kit with Regular Oil 115V (12ft/ 900 lbs.) - FAAC 10420712.5
Details
FAAC 400 CBACR Rapid Hydraulic Swing Gate Opener Kit with Regular Oil 115V (12ft/ 900 lbs.) - FAAC 10420712.5
The FAAC 400 CBACR Rapid Hydraulic Swing Gate Opener Kit with Regular Oil (115V) is tailored for high-frequency use at locations like residential driveways, commercial entryways, or private communities. This low voltage gate opener package provides reliable and smooth performance for swing gates up to 12 feet and 900 pounds, all while allowing up to 80 cycles per hour. Designed for efficient use and minimal maintenance, it features a self-lubricating hydraulic system and manual override for convenience. It's a solid pick for customers seeking a fast, efficient automatic swing gate opener with dependable long-term performance.
Features:
- Rapid cycle gate movement rated for up to 80 uses/hour
- Hydraulic locking in both open and closed positions
- Manual key-access release for emergencies
- Low voltage operation with reliable power
- Low-maintenance, self-lubricating internal system
Technical Specs:
- Actuator Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 2 A
- Motor Rotation Speed: 1400 r.p.m.
- Thrust Capacitor: 25 uF
- Operating Ambient Temperature: 4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Thermal Protection on Motor: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
- Hydraulic Locking: Opening and closing
- Maximum Leaf Length: 12 ft (3.6 m)
- Maximum Leaf Weight: 900 lb (408 Kg)
- Thrust Force: 1045 lbf (465 daN)
- Pump Flow Rate: 1.5 l/min
- Rod Extension Speed: 0.6 in/sec (1.5 cm/sec)
- Effective Rod Stroke: 10.25 in (260 mm)
- Use Frequency: 80 cycles/hour
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 400 CBACR Rapid Gate Operator Only (part number 10420712)
This product is a direct replacement for the FAAC 10420712.5+.
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 10420712.5 |
|---|---|
| Old SKU | FAAC 10420712.5+ |
| Manufacturer | FAAC International Inc. |

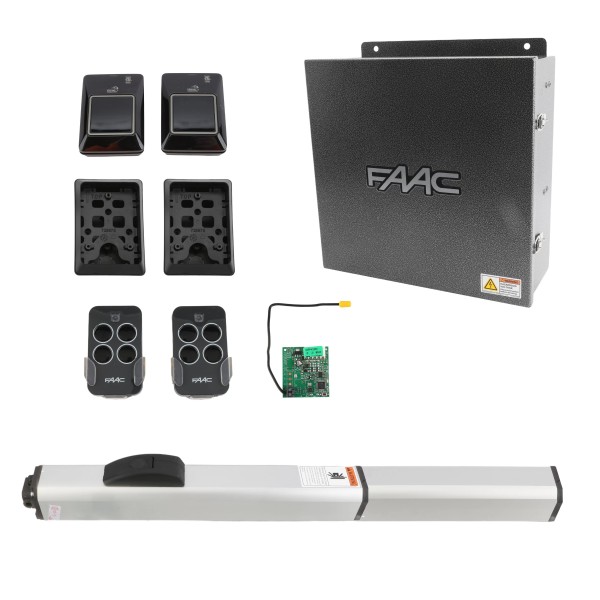

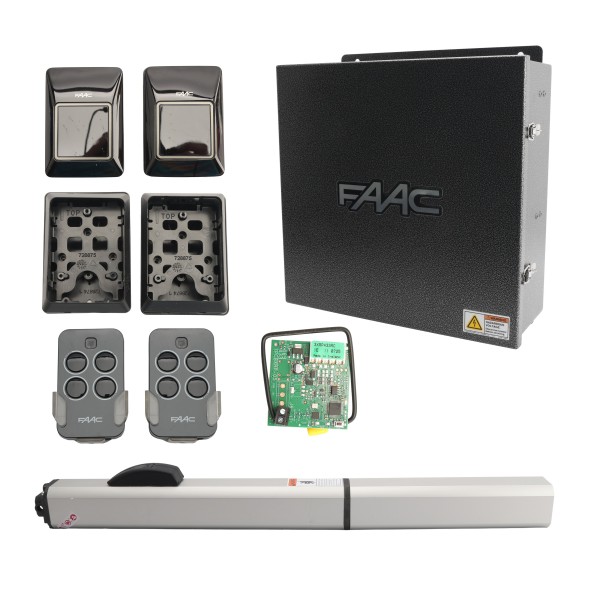

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Color | Stainless Steel |
| Max Gate Length | 12 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Regular Oil |
| Operator Series | 400 CBACR |
