Fast Gate Openers


402 CBC Hydraulic Swing Gate Operator Only with Arctic Oil (115V) - FAAC 104468277

Availability: In stock

$767.20
OR

Quick Overview

Use this gate operator to turn a single kit into a dual master/slave (bi-parting) kit, or use it as a replacement operator. Supports swing gates up to 10 ft long and 900 lbs. Includes operator only.

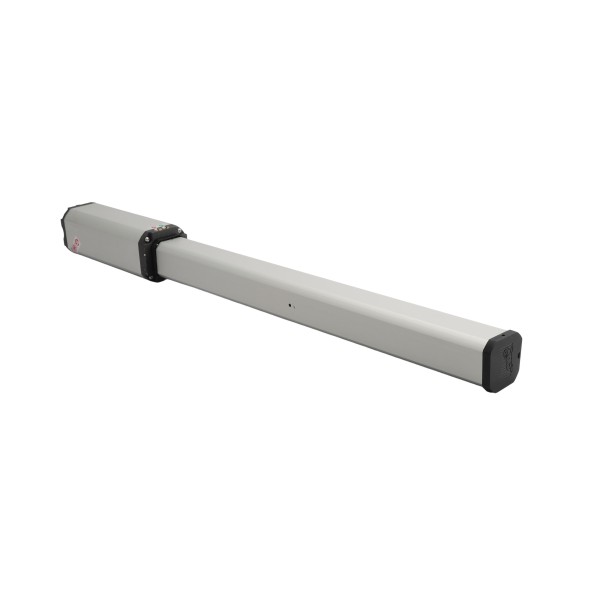

402 CBC Hydraulic Swing Gate Operator Only with Arctic Oil (115V) - FAAC 104468277

Details

Are you looking for a fast, reliable gate operator? The 402 CBC gate operator from FAAC is self-lubricating for long life, operates quietly, and features a compact design that is great for tight space installations. Great for residential applications.

Use this gate operator to turn a single kit into a dual master/slave (bi-parting) kit, or use it as a replacement operator. Supports swing gates up to 10 ft long and 900 lbs. Includes operator only.

Features:

  • Entry level hydraulic operator for residential application
  • Compact design, ideal for tight space installations
  • Hydraulic lock of the gate in closed positions
  • Quiet operation
  • Self lubricating for long life
  • Arctic oil

Technical Specs:

  • Input Voltage: 115 VAC (+10% -6%)
  • Power: 220 W
  • Current: 2A (115V) - 1 A (230V)
  • Motor Rotation Speed: 1400 r.p.m.
  • Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
  • Pump Flow Rate: 1 l/min
  • Traction and Thrust Force: 1124 lbf (500 daN)
  • Leaf Max. Width: 10 ft (3 m)
  • Lead Max. Weight: 900 lb (410 Kg)
  • Usage Frequency (cycles per hour): 55
  • Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
  • Thermal Protection on Motor Winding: 248 °F (120 °C)
  • Protection Class: IP 55
  • Dimensions (L x D x H): 37.7 x 3.3 x 2.4 in (959x85x61mm)

FAAC 402 Manual

FAAC 402 Brochure

Additional Information

SKU 104468277
Manufacturer FAAC International Inc.
Operator Type Swing
Model Operator Only
Max Leaf Length 10 ft
Max Leaf Weight 900 lbs
Voltage 115 VAC
Oil Type Arctic Oil
Mounting Above Ground
Operator Series 402 CBC
