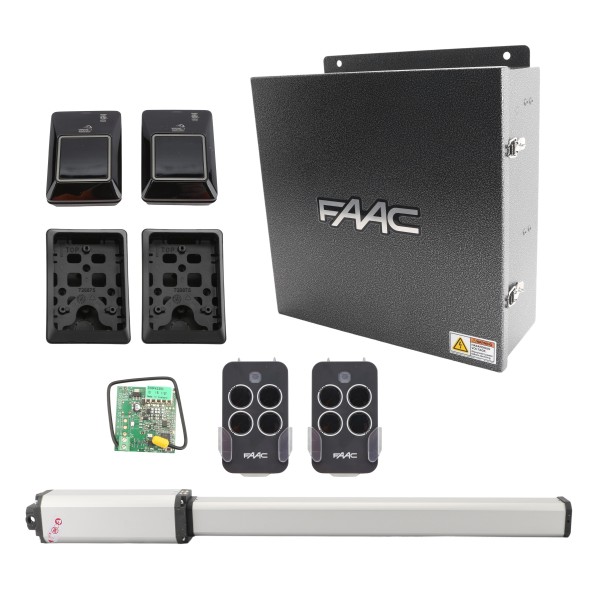

FAAC 402 CBC Hydraulic Swing Gate Opener Kit with Arctic Oil 115V (10ft / 900 lbs.) - FAAC 104468277.5
Are you looking for a fast, reliable gate operator? The 402 CBC gate operator from FAAC is self-lubricating for long life, operates quietly, and features a compact design that is great for tight space installations. This kit includes the hydraulic operator, control board, transmitters and more.
Supports swing gates up to 10 ft long and 900 lbs. Great for residential applications.

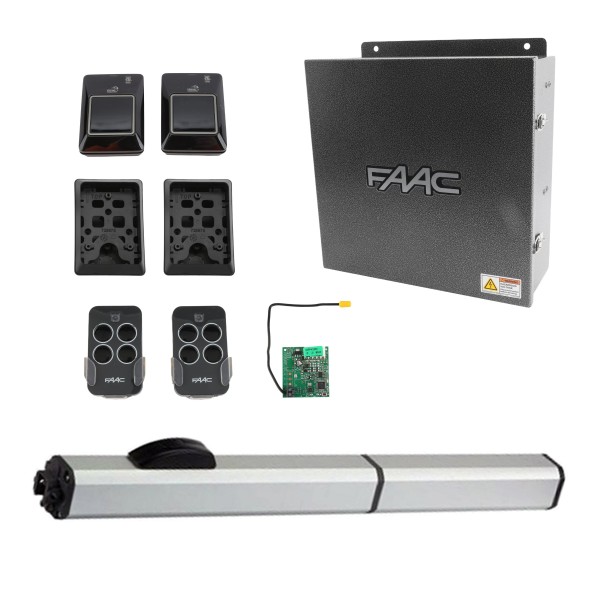

Kit Includes:
- (1) 402 CBC Operator
- (1) 455D Control Board - 115V
- (1) 14" x 16" Pre-Wired Enclosure
- (1) Receiver - 433 RC Plug-In
- (2) 4-Channel Transmitters - XT4 433 RC
Features:
- Entry level hydraulic operator for residential application
- Compact design, ideal for tight space installations
- Hydraulic lock of the gate in closed positions
- Quiet operation
- Self lubricating for long life
- Arctic oil
Technical Specs:
- Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Controller Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 2A (115V) - 1 A (230V)
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Lead Max. Weight: 900 lb (410 Kg)
- Usage Frequency (cycles per hour): 55
- Operating Ambient Temperature: -33 Degrees F to 165 Degrees F (-36 Degrees C to +75 Degrees C)
- Thermal Protection on Motor Winding: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions (L x D x H): 37.7 x 3.3 x 2.4 in (959x85x61mm)
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 402 CBC gate operator only (part number 104468277)
| SKU | 104468277.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Color | Gray |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Arctic Oil |
| Mounting | Linear Arm |
| Operator Series | 402 CBC |
