FAAC 402 CBC Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (10ft / 900 lbs.) - FAAC 104468177.5
Details
FAAC 402 CBC Hydraulic Swing Gate Opener Kit with Arctic Oil 230V (10ft / 900 lbs.) - FAAC 104468177.5
The FAAC 402 CBC with Arctic Oil is a cold-weather-ready electric gate opener kit designed for swing gates up to 10 feet long and 900 pounds. Its compact frame and hydraulic mechanism make it ideal for space-limited residential applications, delivering quiet, self-lubricated operation even in temperatures as low as -33 degrees Fahrenheit. Complete with a pre-wired control box, plug-in receiver, and transmitters, this swing gate opener kit is a comprehensive DIY swing gate opener system. Whether for a driveway or private entry, this automatic swing gate opener brings low voltage dependability and winter-grade performance to your home or property.
Features:
- Designed for residential swing gate applications
- Equipped with arctic-grade hydraulic oil for extreme cold
- Compact housing ideal for tight installations
- Quiet self-lubricating mechanism extends system lifespan
- Hydraulic locking in the closed position
Technical Specs:
- Input Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Controller Voltage: 220/230/240 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 1 A (230V)
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Leaf Max. Weight: 900 lb (410 Kg)
- Usage Frequency: 55 cycles/hour
- Operating Temp: -33 DegreesF to 165 DegreesF (-36 DegreesC to +75 DegreesC)
- Thermal Protection: 248 DegreesF (120 DegreesC)
- Protection Class: IP 55
- Dimensions: 37.7 x 3.3 x 2.4 in (959x85x61 mm)
Interested in turning this into a dual swing gate opener kit? Add the following part:
- 402 CBC Gate Operator Only (part number 104468177)
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 104468177.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

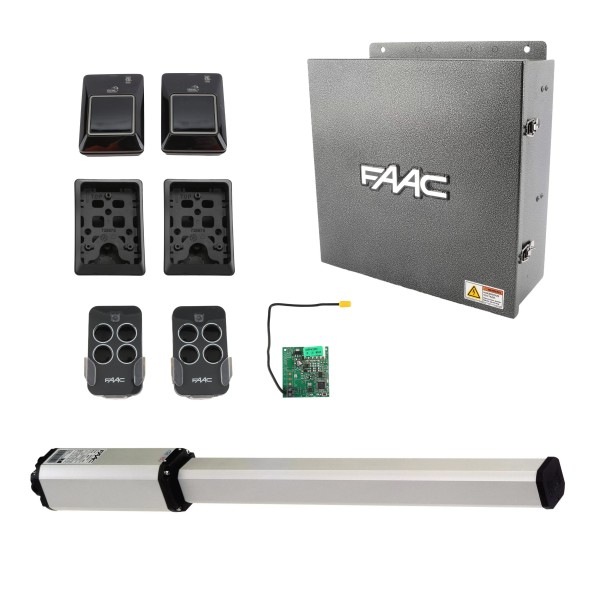

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Color | Gray |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Arctic Oil |
| Operator Series | 402 CBC |
