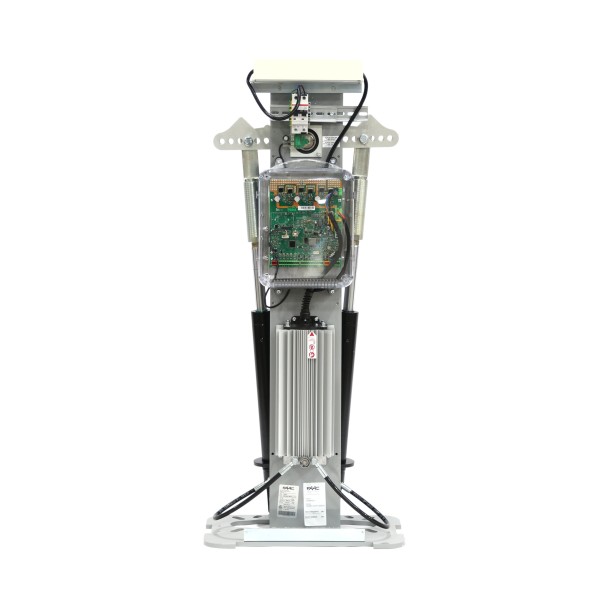

FAAC B680H Automatic Barrier Gate Opener - Stainless Steel (Barrier Arm Sold Separately) - FAAC 1046801

The B680H Automatic 24V Hybrid Barrier Operator by FAAC is a multi-functional barrier operator that is controlled by an easy to program and technologically advanced control unit with an integrated encoder (with reverse in the event of an obstacle), two integrated loop detectors, and Primary/Secondary logic.
Part Number: 1046801
$1,932.12 each
$1,932.12 each
OR

Details

FAAC B680H Automatic Barrier Gate Opener - Stainless Steel (Barrier Arm Sold Separately) - FAAC 1046801

B680H Automatic Barrier Operator - FAAC 1046801

The B680H Automatic 24V Hybrid Barrier Operator by FAAC is a multi-functional barrier operator that is controlled by an easy to program and technologically advanced control unit with an integrated encoder (with reverse in the event of an obstacle), two integrated loop detectors, and Primary/Secondary logic. It is capable of performing up to 2,000,000 cycles by utilizing advanced hybrid technology that features a Hydraulic + Brushless Motor and High Logistic Optimization that allows for a single model to be suitable for all barrier lengths. It also features an adjustable electronic anti-crushing safety system that guarantees stopping and locking of the beam in any position, and a convenient manual release in case of power outage.

Does Not Include Barrier Arm, Beam Bracket, Balancing Spring or Housing.

Features:

  • Barrier Length: 6.5 - 26.5 ft.
  • Opening Time (Programmable): 1.5 - 6 sec.
  • Board Type: E 680 Control Board
  • Removable Housing (Not Included)
  • Simple, Guided Mechanical Setup
  • Automatic, 2-Step Control Board Setup
  • Switching Power Supply
  • Integrated Absolute Encoder
  • "Everlasting" Springs
  • 24V Hybrid Heart
  • Compatible with 620 and 640 foundation plates

Technical Specifications:

  • Barrier Arm Type: Round
  • Voltage Input: 100 - 240V AC 50/60 Hz
  • Maximum Power: 240 W
  • Electric Motor: Brushless 36V DC
  • Absorbed Current: 1.1 A (@ 230V DC)
  • Motor Rotation Speed: 1000 - 6000 rpm
  • Motor-Pump Unit Capacity: 3.2 lpm
  • Frequency Of Use: Continuous
  • Electronic Declaration: Absolute Magnetic Encoder
  • Oil Type: FAAC HP OIL
  • Protection Rating: IP44
  • Operating Temperature: -4 Degrees F To 131 Degrees F

Manual

Specification Sheet

Prefer to Call? (888) 378-1037

Questions about part number 1046801?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 1046801
Operator Type Barrier
Input Voltage 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Color Stainless Steel
Mounting Above Ground
Max Gate Length 26.5 ft.
Operator Kit Type Operator Only
Manufacturer FAAC International Inc.
Operator Series B680H
