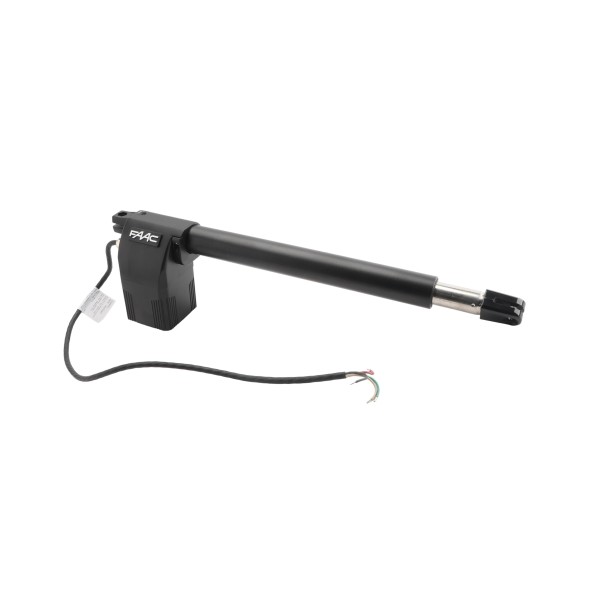

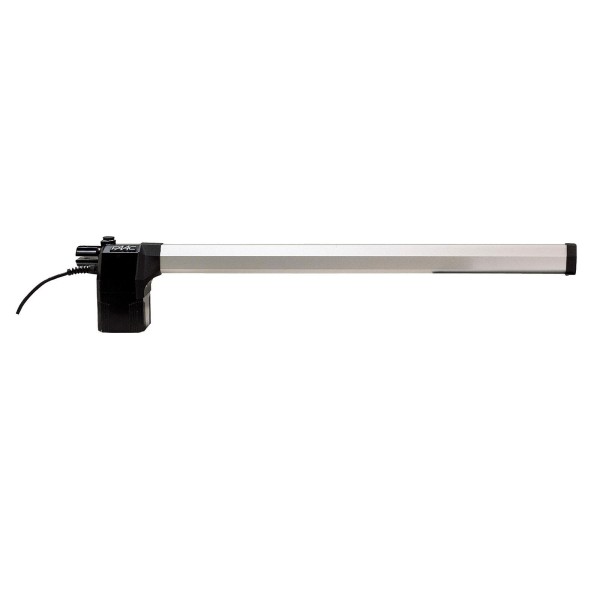

FAAC 412 SX Swing Gate Opener Only for Left-Hinged Bi-Parting Gates (14ft/ 500 lbs) - FAAC 1044761
Details
FAAC 412 SX Swing Gate Opener Only for Left-Hinged Bi-Parting Gates (14ft/ 500 lbs) - FAAC 1044761
Looking for a reliable left-hinged swing gate opener for your home? The 412 electromechanical gate operator features anti-crushing safety and is easy to install. It also features a built-in manual release that allows you to open your gate in the event of a power outage. This gate opener was created for light residential, single-family applications. This single swing gate opener is for left-hinged gates up to 14 feet long and 500 pounds. Designed and manufactured by FAAC, the leading name in gate openers. Includes gate operator only.
Features:
- Designed for light residential, single family use
- Mechanical lock in the open and close position
- Built in manual release in case of power failure
- Simple installation and maintenance
- Anti-crushing safety thanks to the electronic control board
Technical Specs:
- Input Voltage: 115/115/120 AC (Single Phase 60 Hz)
- Power: 280 W
- Current: 3 A
- Thrust Capacitor: 25 uF
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.6 in/s (1.5 cm/s)
- Rod Stroke: 11.4 in (290 mm)
- Leaf Maximum Length: 14 feet (4.2 m)
- Leaf Maximum Weight: 500 lbs (226.8 kg)
- Use Frequency (Cycles per Hour): 18
- Traction and Thrust Force: 719 lbf (320 daN)
- Thermal Protection on Motor Winding: 284 °F (140 °C)
- Operating Ambient Temperature: 4°F to 131°F (-20 °C to +55 °C)
- Protection Class: IP 44
- Dimensions (L x D x H): 39.3 x 3.5 x 7.7 in (1000 x 90 x 195mm)
| SKU | 1044761 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing Gate Operator |
| Color | Painted Steel |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Gate Orientation | Left-Hinged Gates |
| Max Gate Length | 14 ft. |
| Max Gate Weight | 500 lbs. |
| Operator Kit Type | Operator Only |
| Operator Series | 412 SX |
