FAAC 415 Single Swing Gate Opener Kit (15ft / 700 lbs.) - FAAC 10441811.5

Details

FAAC 415 Single Swing Gate Opener Kit (15ft / 700 lbs.) - FAAC 10441811.5

The 415 low voltage gate operator by FAAC features built-in limit switches, an aluminum body, and a battery back-up in the event of a power outage. Operates gates up to 15 ft long and 700 lbs.

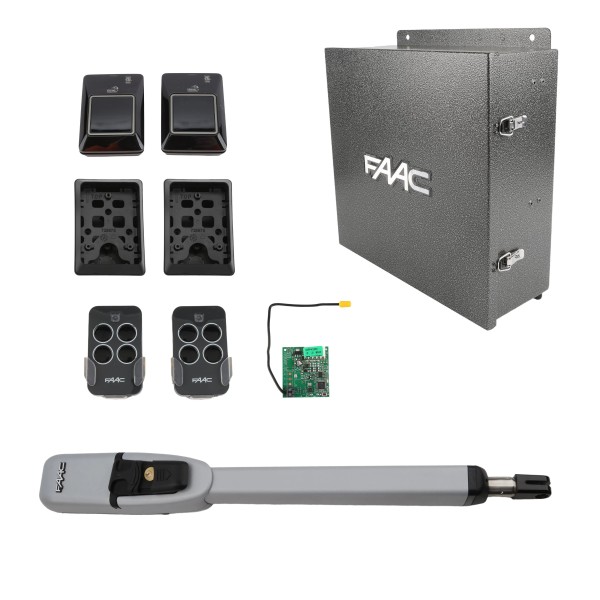

Kit Includes:

• (1) 415 Operator
• (1) E024U Control Board
• (1) Power Supply
• (1) 14 x 16 Enclosure
• (2) Batteries - 12V 8 Ah
• (1) Receiver 433 RC Plug-In
• (2) 4-Channel Transmitters XT4 433 RC

Features:

• "In-axis" thrust operator
• Built in limit switches
• Die-cast aluminium body, entirely double-coat painted for longer life
• Manual release device with simplified key-protected activation
• Horizontal exit for cables to allow near to ground installation
• Maximum safety thanks to the E024U control board reverse on contact feature
• Built in battery backup to ensure operation in case of power outage
• UL325 Listed

Technical Specs:

• Input Voltage For Gate Actuator: 24 DC
• Input Voltage For Gate Controller: 110/115/120 AC (60 Hz, 1 Phase)
• Power: 70 W
• Current: 3 A
• Thrust: 630 lbf (280 daN)
• Effective Stroke: 15.75 in (400 mm)
• Rod Speed: 0.63"/sec (1,6 cm/sec)
• Leaf Max. Width: 15 ft (4.6 m)
• Leaf Max. Weight: 700 lb (318 Kg)
• Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
• Use Frequency: Continuous
• Dimensions (L x D x H): 36 x 4 x 6 in (904x105x148 mm)
• Protection Class: IP 54

Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following parts:

• 415 gate operator only (part number 104418115)
• AWG 12 2-conductor cable for operator (part number 2197)

This product is a direct replacement for the FAAC 10441811.5E+.
