FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Regular Oil 115V (10ft / 900 lbs.) - FAAC 10420012.5
Details
FAAC 422 CBAC Hydraulic Swing Gate Opener Kit with Regular Oil 115V (10ft / 900 lbs.) - FAAC 10420012.5
The FAAC 422 CBAC hydraulic swing gate opener kit (115V) offers dependable performance for residential driveways, apartment complexes, and gated entries. This automatic swing gate opener is designed for gates up to 10 feet long and 900 pounds, cycling up to 55 times per hour without overheating. It features quiet operation, hydraulic locking in both positions, and a key-protected manual release for added convenience. This electric gate opener kit can also be expanded into a dual swing gate opener kit for bi-parting gates.
Features:
- Hydraulic gate opener for high-cycle residential applications
- Quiet gate movement, ideal for populated residential areas
- Hydraulic lock in both open and closed positions for gate security
- Manual key release system provides access during power loss
- Self-lubricating components ensure long service life with minimal upkeep
Technical Specs:
- Actuator Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 220 W
- Current: 2 A
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Lead Max. Weight: 900 lb (410 Kg)
- Usage Frequency: 55 cycles/hour
- Operating Ambient Temperature: 4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Thermal Protection on Motor Winding: 248 Degrees F (120 Degrees C)
- Protection Class: IP 55
- Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following part:
- 422 CBAC Operator Only (part number 10420012)
This product is a direct replacement for the FAAC 10420012.5+.
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 10420012.5 |
|---|---|
| Old SKU | FAAC 10420012.5+ |
| Manufacturer | FAAC International Inc. |

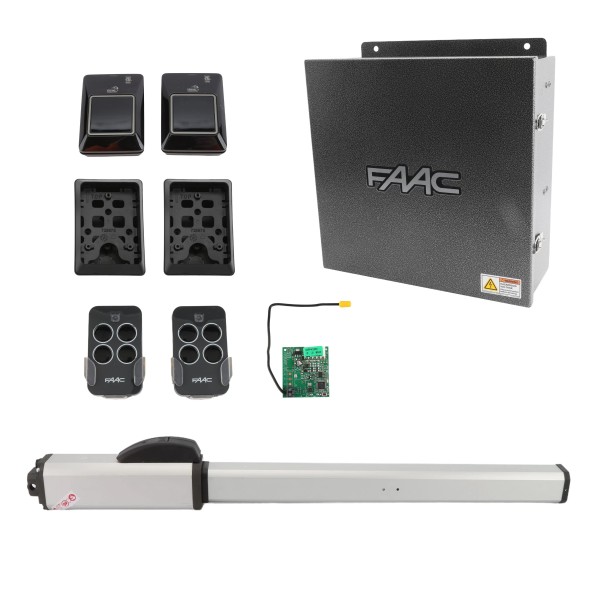

| Kit Includes | Conduit Adapter, Control Board w/ Enclosure, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Actuator Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Color | Stainless Steel |
| Max Gate Length | 10 ft. |
| Max Gate Weight | 900 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Oil Type | Regular Oil |
| Operator Series | 422 CBAC |
