FAAC S800H Single CBAC 100 Degree Stainless Steel In-Ground Hydraulic Swing Gate Opener Kit (13ft / 1760 lbs.) - FAAC 108710.5SS

The S800H 100 Degree hydraulic stainless steel gate opener is a great gate opener for in-ground applications, such as residential and condominium uses. Your gate shouldn't be covered by an above-ground operator - get your guests to notice the unique detail in your gate with this hidden operator.

This stainless steel low voltage operator is for swing gates up to 13 feet and 1760 pounds. It has a 100 degree opening angle.

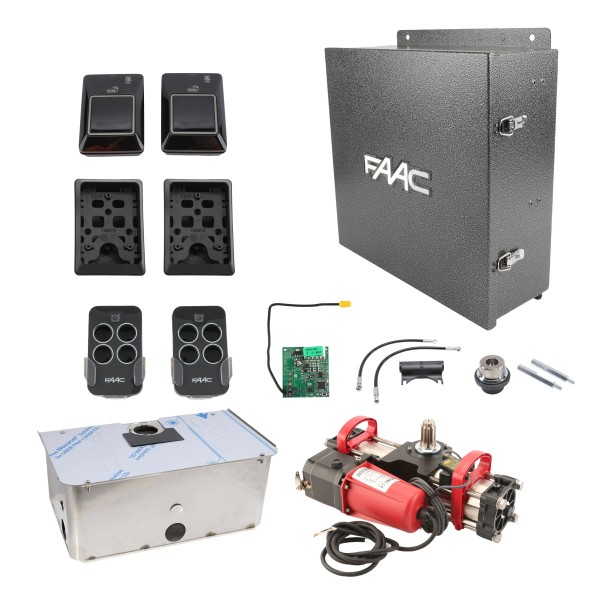

Kit Includes:

• (1) S800H CBAC Gate Operator with Accessories (Stainless Steel)
• (1) Hydraulic Manual Release
• (1) Splined Shaft collar with Mounting Bolts
• (1) Support Box (Stainless Steel)
• (1) E024U Control Board
• (1) Enclosure
• (2) Batteries 12V 8 Ah
• (1) Power Supply
• (1) Receiver 433 RC Plug-In
• (2) 4-Channel Transmitters XT4 433 RC

Features:

• Stainless steel operator and support box
• Hybrid technology
• Integrated encoder to control operator position
• 100 Degree opening angle
• Opening/Closing mechanical stops integrated
• Easy handling and installation thanks to the integrated handles
• Maximum safety thanks to the E024U control board reverse on contact feature
• Built in battery backup to ensure operation in case of power outage
• SBW version for use in areas subject to strong winds
• UL325 Listed

Technical Specs:

• Model: S800H CBAC
• Input Voltage For Gate Actuator: 24 DC
• Input Voltage For Gate Controller: 110/115/120 AC (60 Hz, 1 Phase)
• Power: 60 W
• Current: 7 A
• Max Torque: 442 lbf.ft (600 Nm)
• Max Angle Speed: 8.2 Degrees /s
• Max Opening Angle: 113 Degrees (S800H 100 Degree ) - 187 Degrees (S800H 180 Degree )
• Max. Leaf Width: 13 ft (4 m)
• Max. Leaf Weight: 1760 lb (800 Kg)
• Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
• Use Frequency: Continuous
• Projection Class: IP 67
• Hydraulic Locks: Installed

While the package includes everything you need for a basic installation, other peripheral devices may be added for a more complete gate operating system. Consider adding a photobeam assembly, transmitters, receivers, and other parts for a more complete installation.

Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following parts:

• S800H CBAC 100 Degree gate operator for dual kit (part number 10871015.5)
• Stainless steel support box (part number 490113)
• AWG 12 2-conductor cable for operator (part number 2197)
• AWG 22 2-conductor cable for encoder (part number 2193)

This product is a direct replacement for the FAAC 108710.5SS+.
