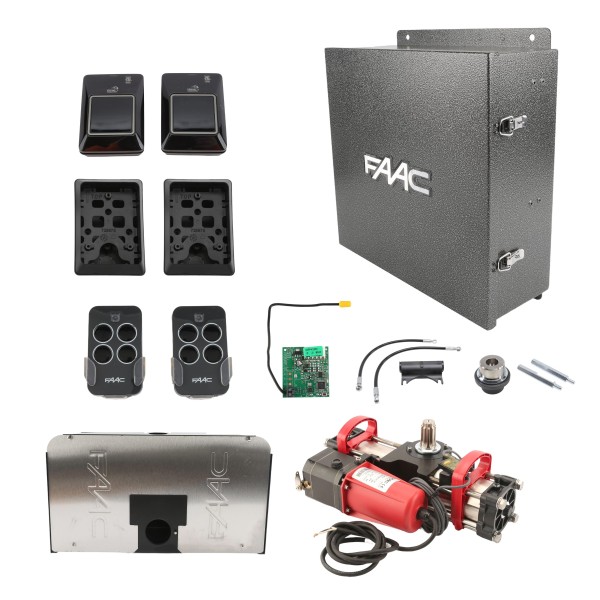

S800H CBAC 100° In-Ground Hydraulic Swing Gate Opener Kit - FAAC 108710.5
The S800H 100 degree hydraulic gate opener is a great gate opener for in-ground applications, such as residential and condominium uses. Your gate shouldn't be covered by an above-ground operator - get your guests to notice the unique detail in your gate with this hidden operator.
This low voltage operator is for swing gates up to 13 feet and 1760 pounds. It has a 100 degree opening angle.

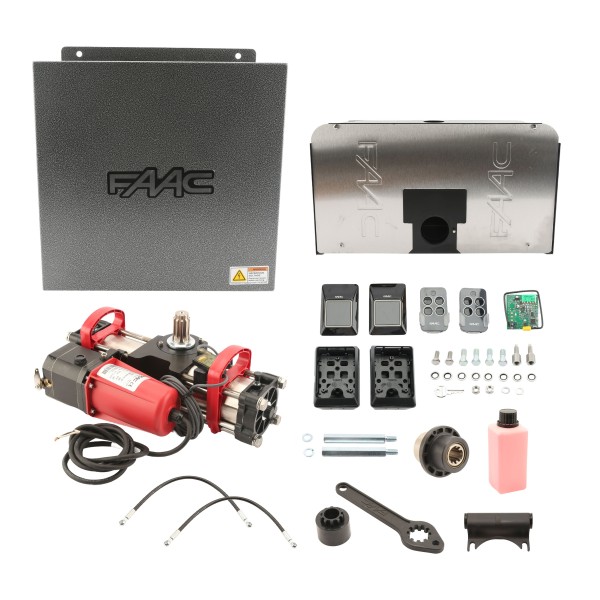

Kit Includes:
- (1) S800H CBAC Gate Operator with Accessories
- (1) Hydraulic Manual Release
- (1) Splined Shaft Collar with Mounting Bolts
- (1) Support Box
- (1) E024U Control Board
- (1) Enclosure
- (2) Batteries 12V 8 Ah
- (1) Power Supply
- (1) Receiver 433 RC Plug-In
- (2) 4-Channel Transmitters XT4 433 RC
Features:
- Hybrid technology
- Integrated encoder to control operator position
- 100° opening angle
- Opening/Closing mechanical stops integrated
- Easy handling and installation thanks to the integrated handles
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in case of power outage
- SBW version for use in areas subject to strong winds
- UL325 Listed
Technical Specs:
- Model: S800H CBAC
- Input Voltage: 24 VDC
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf.ft (600 Nm)
- Max Angle Speed: 8.2°/s
- Max Opening Angle: 113° (S800H 100°) - 187° (S800H 180°)
- Max. Leaf Width: 13 ft (4 m)
- Max. Leaf Weight: 1760 lb (800 Kg)
- Operating Ambient Temperature: -4°F to 131°F (-20°C to +55°C)
- Use Frequency: Continuous
- Projection Class: IP 67
- Hydraulic Locks: Installed
While the package includes everything you need for a basic installation, other peripheral devices may be added for a more complete gate operating system. Consider adding a photobeam assembly, transmitters, receivers, and other parts for a more complete installation.
Interested in turning this single gate operator into a dual gate system? To make a master/slave (bi-parting) kit, add the following parts:
- S800H CBAC 100° gate operator for dual kit (part number 10871015.5)
- Support box (part number 490112)
- AWG 12 2-conductor cable for operator (part number 2197)
- AWG 22 2-conductor cable for encoder (part number 2193)
This product is a direct replacement for the FAAC 108710.5+.
FAAC S800H Manual
FAAC S800H Brochure
Additional Information
| SKU | 108710.5 |
|---|---|
| Old SKU | FAAC 108710.5+ |
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Max Leaf Length | 13 ft. |
| Max Leaf Weight | 1,760 lbs. |
| Operator Kit Type | Single Gate Opener Kit |
| Voltage | 24 VDC |
| Mounting | In-Ground Arm |
| Operator Series | S800H CBAC |
