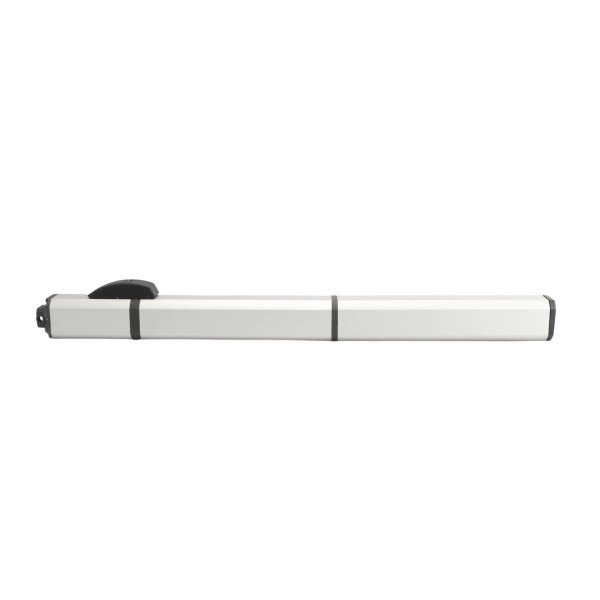

FAAC S450H Dual CBAC Hydraulic Swing Gate Opener Arm Secondary Kit with Regular Oil (14ft / 1100 lbs.) - FAAC 10410015.5
Details
FAAC S450H Dual CBAC Hydraulic Swing Gate Opener Arm Secondary Kit with Regular Oil (14ft / 1100 lbs.) - FAAC 10410015.5
This secondary arm transforms your FAAC S450H setup into a complete dual swing gate opener kit, ideal for residential driveways and light-duty commercial entryways. It features hybrid hydraulic motion and 24 VDC electronics, capable of handling gates up to 14 feet wide and 1100 pounds. Designed for quick integration, it includes essential cables and a junction box. Whether for home, small business, or automatic farm gate opener needs, this arm extends your system's potential.
Features:
- Designed to upgrade a single opener into a dual gate system
- Hybrid hydraulic-electric operation ensures smooth performance
- Built-in encoder allows for accurate position control
- Multi-position bracket system supports flexible mounting
- Compatible with battery backup swing gate opener systems
- Seamlessly integrates with the E024U control board and UL325 safety features
- Rated for UL325 Safety Standards
Technical Specs:
- Model: CBAC
- Input Voltage For Actuator: 24 VDC
- Input Controller: 110/115/120 AC (60HZ, 1 Phase)
- Power: 60 W
- Current: 7 A
- Max Thrust: 1124 lbf (500 daN)
- Rod Stroke: 12.2 in (311 mm)
- Max Rod Extension Speed: 1 in/s (2.5 cm/s)
- Max. Leaf Width: 14 ft (4.3 m)
- Max. Leaf Weight: 1100 lb (500 Kg)
- Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Use Frequency: Continuous
- Operator Dimensions: 43.8 x 3.3 x 4.7 in (1113x85x119 mm)
- Projection Class: IP 55
- Hydraulic Locks: Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 10410015.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Kit Includes | Conduit Adapter, Enclosure w/ Batteries, Operator, Photobeam Photocell(s), Receiver, Transmitter |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Color | Stainless Steel |
| Max Gate Length | 14 ft. |
| Max Gate Weight | 1,100 lbs. |
| Max Opening Angle | 100 Degree Opening |
| Operator Kit Type | Dual Gate Opener Kit |
| Oil Type | Regular Oil |
| Operator Series | S450H CBAC |
