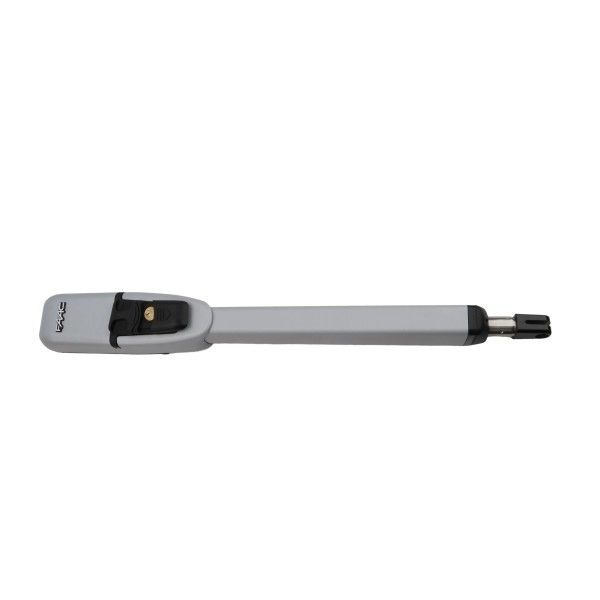

FAAC 415 Single Swing Gate Opener Arm Secondary Kit Max Gate (15ft / 700 lbs.) - FAAC 104418115.5
Details
FAAC 415 Single Swing Gate Opener Arm Secondary Kit Max Gate (15ft / 700 lbs.) - FAAC 104418115.5
The 415 low voltage gate operator by FAAC features built-in limit switches, an aluminum body, and a battery back-up in the event of a power outage. Operates gates up to 15 ft long and 700 lbs. Use this operator to turn your single kit into a Primary/Secondary (bi-parting) kit.
Kit Includes:
- (1) Operator 415
- (1) Junction Box For Electrical Connections
- (1) 40' AWG 12 - 2 Conductors Cable (Operator)
- (1) 40' AWG 18 - 3 Conductors Cable (Limit Switch)
Features:
- "In-axis" thrust operator
- Built in limit switches
- Die-cast aluminium body, entirely double-coat painted for longer life
- Manual release device with simplified key-protected activation
- Horizontal exit for cables to allow near to ground installation
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in case of power outage
- UL325 Listed
Technical Specs:
- Input Voltage: 24 VDC
- Power: 70 W
- Current: 3 A
- Thrust: 630 lbf (280 daN)
- Effective Stroke: 15.75 in (400 mm)
- Rod Speed: 0.63"/sec (1,6 cm/sec)
- Leaf Max. Width: 15 ft (4.6 m)
- Leaf Max. Weight: 700 lb (318 Kg)
- Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Use Frequency: Continuous
- Dimensions (L x D x H): 36 x 4 x 6 in (904x105x148 mm)
- Protection Class: IP 54
| SKU | 104418115.5 |
|---|---|
| Manufacturer | FAAC International Inc. |
| Operator Type | Swing |
| Color | Painted Steel |
| Gate Orientation | Left-Hinged Gates, Right-Hinged Gates |
| Max Gate Length | 15 ft. |
| Max Gate Weight | 700 lbs. |
| Max Opening Angle | 90 Degree Opening |
| Operator Kit Type | Single Gate Opener Kit |
| Mounting | Linear Arm |
| Operator Series | 415 |
