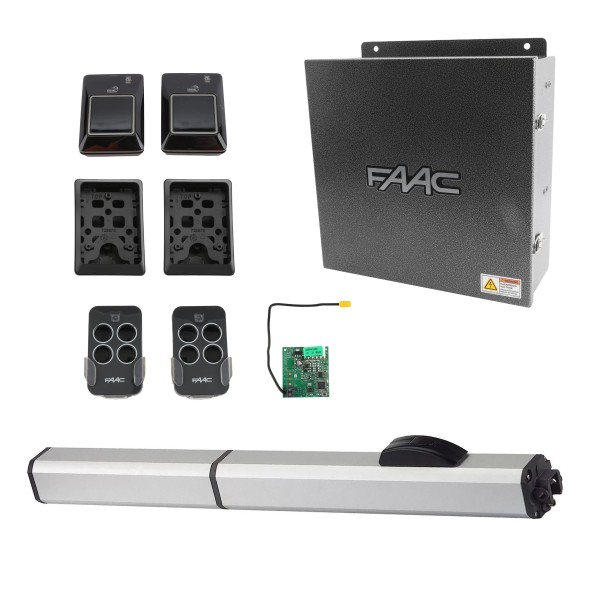

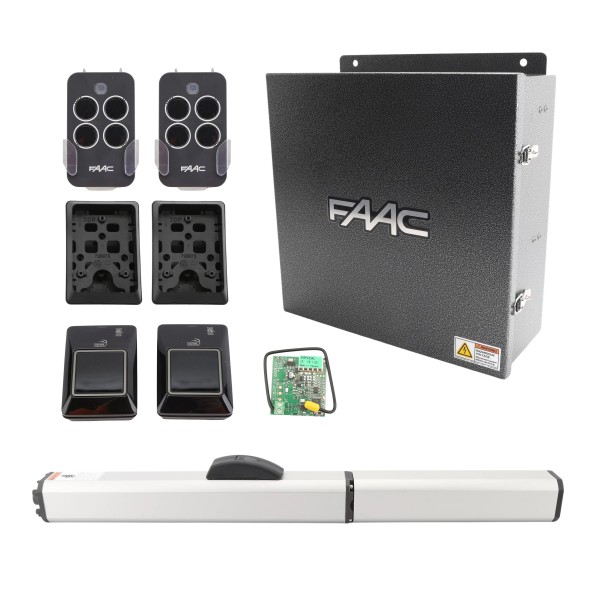

FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Kit with Regular Oil 115V (16ft / 1300 lbs.) - FAAC 10420112.5

The FAAC 400 CBAC Standard Hydraulic Swing Gate Opener Kit with Regular Oil (115V) delivers high-performance gate automation for commercial, residential, and industrial applications. This electric gate opener kit supports gates up to 16 feet long and 1300 pounds, with a use frequency of up to 70 cycles per hour. Its hydraulic system operates quietly and features a key-protected manual release, plus built-in hydraulic locking for secure open and close positions. Whether you're building a swing gate opener for a residential driveway or a subdivision entry, this system offers dependable operation and expandability into a dual swing gate opener kit.

Features:

• Ideal for large residential and commercial swing gate automation
• Supports high-frequency use up to 70 cycles per hour
• Quiet operation with integrated hydraulic locking
• Key-protected manual release for emergency gate access
• Self-lubricating design reduces maintenance and increases reliability

Technical Specs:

• Actuator Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
• Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
• Power: 220 W
• Current: 2 A
• Motor Rotation Speed: 1400 r.p.m.
• Thrust Capacitor: 25 uF
• Operating Ambient Temperature: 4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
• Thermal Protection on Motor: 248 Degrees F (120 Degrees C)
• Protection Class: IP 55
• Dimensions: 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
• Hydraulic Locking: Opening and closing
• Maximum Leaf Length: 16 ft (4.9 m)
• Maximum Leaf Weight: 1300 lb (589 Kg)
• Thrust Force: 1390 lbf (620 daN)
• Pump Flow Rate: 1 l/min
• Rod Extension Speed: 0.4 in/sec (1 cm/sec)
• Effective Rod Stroke: 10.25 in (260 mm)
• Use Frequency: 70 cycles/hour

This product is a direct replacement for the FAAC 10420112.5+.

Manual

Specification Sheet

Frequently Asked Questions:

What are the benefits of buying a complete swing gate opener kit?

A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.

How do I choose the right swing gate opener kit for my gate?

Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.

Can these gate opener kits be installed without a professional?

Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.

What's the difference between a solar and low voltage swing gate opener?

Solar: Best for remote areas, powered by a panel and battery.

Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
