FAAC S800H Single In Support Box CBAC 100 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (13ft / 1760 lbs.) - FAAC 108710151.5
Details
FAAC S800H Single In Support Box CBAC 100 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (13ft / 1760 lbs.) - FAAC 108710151.5
The FAAC S800H CBAC 180 Degree Single Kit is built for those needing full gate swing capability without compromising design. Supporting gates up to 13 feet and 1,760 pounds, it features hybrid hydraulic technology and a full 180-degree opening angle. The integrated encoder and battery backup ensure smooth performance and safety even in adverse conditions. This electric gate opener kit is well-suited for swing gate systems where wide clearance, high usage frequency, and in-ground mounting are required.
Features:
- Hybrid technology
- Integrated encoder to control operator position
- 180 Degree opening angle
- Opening/Closing mechanical stops integrated
- Easy handling and installation thanks to the integrated handles
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in case of power outage
- SBW version for use in areas subject to strong winds
- Rated for UL325 Safety Standards
Technical Specs:
- Model: S800H CBAC
- Input Voltage For Gate Actuator: 24 DC
- Input Voltage For Gate Controller: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft (600 Nm)
- Max Angle Speed: 8.2 Degrees/s
- Max Opening Angle: 113 Degrees (S800H 100 Degree) - 187 Degrees (S800H 180 Degree)
- Max. Leaf Width: 13 ft (4 m)
- Max. Leaf Weight: 1760 lb (800 Kg)
- Operating Ambient Temperature: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Use Frequency: Continuous
- Projection Class: IP 67
- Hydraulic Locks: Installed
Interested in turning this single gate operator into a dual gate system? To make a Primary/Secondary (bi-parting) kit, add the following parts:
- S800H CBAC 180 Degree gate operator for dual kit (part number 10871215.5)
- Support box (part number 490112)
- AWG 12 2-conductor cable for operator (part number 2197)
- AWG 22 2-conductor cable for encoder (part number 2193)
This product is a direct replacement for the FAAC 108712.5+.
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 108710151.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

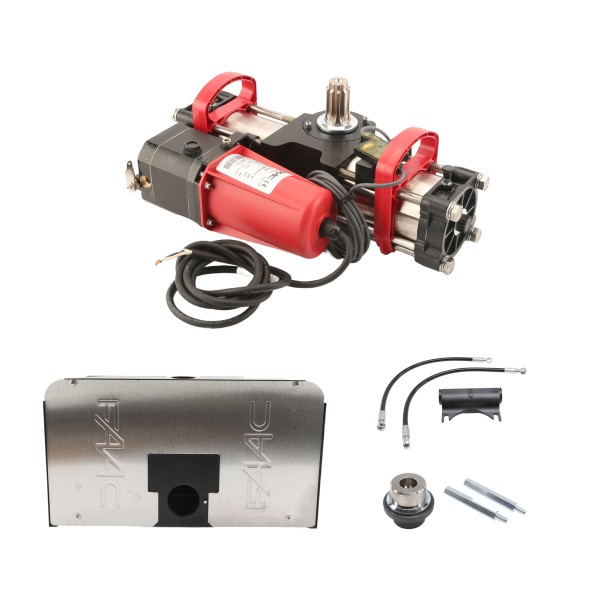

| Kit Includes | Conductor Cable(s), Hydraulic Manual Release, Junction Box, Operator, Splined Shaft Collar w/ Mounting Bolts, Support Box |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Stainless Steel |
| Max Gate Length | 13 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 100 Degree Opening |
| In-Ground Housing | Standard Steel Housing |
| Operator Kit Type | Single Gate Opener Kit |
| Operator Series | S800H CBAC |
