FAAC S800H Single CBAC 180 Degree In Support Box In-Ground Hydraulic Swing Gate Opener Secondary Kit (13ft / 1760 lbs.) - FAAC 108712151.5
Details
FAAC S800H Single CBAC 180 Degree In Support Box In-Ground Hydraulic Swing Gate Opener Secondary Kit (13ft / 1760 lbs.) - FAAC 108712151.5
The FAAC S800H Dual CBAC 180 Degree In-Ground Hydraulic Swing Gate Opener Kit is engineered for demanding dual swing gate installations. This low voltage gate opener package includes two 180-degree capable underground actuators that deliver seamless performance for commercial, residential, or large driveway gates. The in-ground design preserves aesthetics while offering powerful, quiet, and continuous operation. Designed to be a direct replacement for legacy models, this kit supports dual swing gates up to 13 feet and 1,760 pounds each, delivering unmatched reliability and UL325-compliant safety.
Features:
- Dual 180-degree underground gate operators
- Hybrid hydraulic drive with encoder-based positioning
- Opening/Closing mechanical stops integrated
- Reinforced handles for easier installation
- Reverse-on-contact safety via E024U control board
- Battery backup included
- SBW version for strong wind resistance
- Rated for UL325 Safety Standards
Technical Specs:
- Model: S800H CBAC
- Input Voltage (Actuator): 24 DC
- Input Voltage (Controller): 110/115/120 AC (60 Hz, 1 Phase)
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft (600 Nm)
- Max Opening Angle: 187 Degrees
- Gate Length (Each Leaf): 13 ft (4 m)
- Gate Weight (Each Leaf): 1760 lb (800 Kg)
- Ambient Temp: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
- Use Frequency: Continuous
- Protection Class: IP 67
- Hydraulic Locks: Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 108712151.5 |
|---|---|
| Manufacturer | FAAC International Inc. |

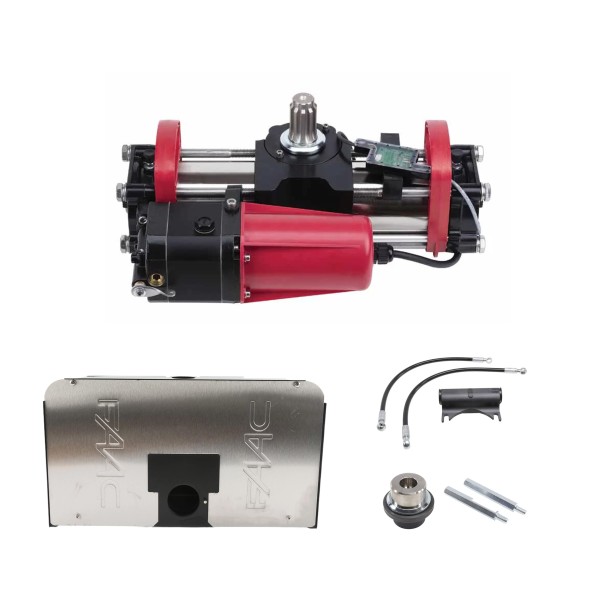

| Kit Includes | Conductor Cable(s), Hydraulic Manual Release, Junction Box, Operator, Splined Shaft Collar w/ Mounting Bolts, Support Box |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Stainless Steel |
| Max Gate Length | 13 ft. |
| Max Gate Weight | 1,760 lbs. |
| In-Ground Housing | Standard Steel Housing |
| Operator Kit Type | Single Gate Opener Kit |
| Operator Series | S800H CBAC |
