FAAC S800H Dual In Support Box SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (16ft / 1760 lbs.) - FAAC 108714151.5

This low voltage operator is for swing gates up to 16 feet and 1760 pounds. It has a 100-degree opening angle. Use this operator to make the single kit into a primary/secondary (bi-parting) kit.

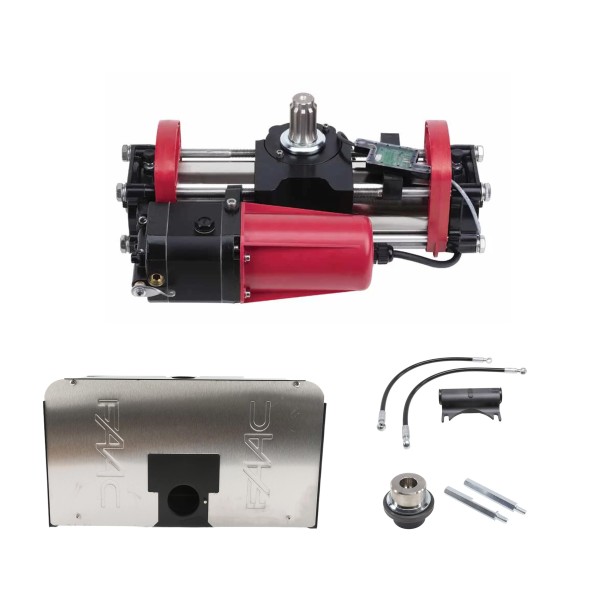

Kit Includes:

  • (1) S800H SBW Gate Operator with Accessories
  • (1) Splined Shaft collar with Mounting Bolts
  • (1) Support Box
  • (1) Junction Box For Electrical Connection
  • (1) 40' AWG 12 - 2 Conductors Cable (Operator)
  • (1) 40' AWG 22 - 2 Conductors Cable (Encoder)
Part Number: 108714151.5
$2,340.36 each
$2,340.36 each
OR


Details

FAAC S800H Dual In Support Box SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (16ft / 1760 lbs.) - FAAC 108714151.5

Combining sleek durability and wind-resistant engineering, the FAAC S800H Single SBW 100 Degree Hydraulic Gate Opener with Stainless Steel Support Box is a premium in-ground solution. This automatic swing gate opener is ideal for residential or commercial settings where aesthetics and reliability matter. The SBW build adds resilience against high winds, while the stainless steel box enhances longevity and weather resistance. Capable of managing swing gates up to 16 feet and 1,760 pounds, this heavy duty swing gate opener fits perfectly in both private estates and industrial facilities.

Features:

  • SBW (Strong Wind Barrier) version for wind-prone locations
  • Stainless steel support box for added durability
  • Hybrid electro-hydraulic technology
  • 100 Degree opening angle
  • Built-in mechanical stops and integrated handles
  • E024U board with reverse-on-contact safety
  • Battery backup for uninterrupted access
  • Designed for underground, discreet installations
  • Rated for UL325 Safety Standards

Specifications:

  • Model: S800H SBW
  • Actuator Voltage: 24 DC
  • Controller Voltage: 110/115/120 AC, 60 Hz, Single Phase
  • Power: 60 W
  • Current: 7 A
  • Max Torque: 442 lbf ft (600 Nm)
  • Max Opening Angle: 113 Degrees
  • Leaf Width: 16 ft (4.9 m)
  • Leaf Weight: 1,760 lb (800 kg)
  • Operating Temp: -4 Degrees F to 131 Degrees F (-20 Degrees C to +55 Degrees C)
  • Duty Cycle: Continuous
  • Ingress Protection: IP 67
  • Hydraulic Locks: Not Installed

Manual

Specification Sheet


Frequently Asked Questions:

What are the benefits of buying a complete swing gate opener kit?

A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.

How do I choose the right swing gate opener kit for my gate?

Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.

Can these gate opener kits be installed without a professional?

Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.

What's the difference between a solar and low voltage swing gate opener?

Solar: Best for remote areas, powered by a panel and battery.

Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.

Prefer to Call? (888) 378-1037

Questions about part number 108714151.5?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 108714151.5
Manufacturer FAAC International Inc.
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Operator Type Swing Gate Operator
Actuator Voltage 24 DC
Color Stainless Steel
Max Gate Length 16 ft.
Max Gate Weight 1,760 lbs.
Max Opening Angle 100 Degree Opening
In-Ground Housing Standard Steel Housing
Operator Kit Type Dual Gate Opener Kit
Operator Series S800H SBW
