FAAC S800H Dual In Stainless Steel Support Bo SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (16ft / 1760 lbs.) - FAAC 108714151.5SS
Details
FAAC S800H Dual In Stainless Steel Support Bo SBW 100 Degree In-Ground Hydraulic Swing Gate Opener Secondary Kit (16ft / 1760 lbs.) - FAAC 108714151.5SS
The FAAC S800H SBW 100 Degree Dual Secondary Kit with Stainless Steel Support Box offers powerful and discreet performance in demanding wind conditions. Built for underground installation, it maintains gate aesthetics while delivering top-tier functionality. The stainless steel support box provides additional corrosion resistance, perfect for coastal or high-humidity environments. This operator handles gates up to 16 feet long and 1,760 pounds, with a 100-degree opening range. Use it to convert your single opener into a dual, bi-parting gate system.
Features:
- Stainless steel support box for superior durability
- SBW version for wind-prone installations
- Hybrid hydraulic and electric technology
- 100-degree opening angle with integrated mechanical stops
- Built-in encoder for precision control
- Battery backup for uninterrupted performance
- E024U control board with reverse-on-contact feature
- Rated for UL325 Safety Standards
Specifications:
- Model: S800H SBW
- Actuator Voltage: 24 DC
- Controller Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft (600 Nm)
- Max Opening Angle: 113 Degrees
- Leaf Width: 16 ft (4.9 m)
- Leaf Weight: 1,760 lb (800 kg)
- Ingress Protection: IP 67
- Hydraulic Locks: Not Installed
Frequently Asked Questions:
What are the benefits of buying a complete swing gate opener kit?
A complete kit includes actuator arms, control board, remotes, brackets, and sometimes safety devices. Purchasing a complete Swing Gate Opener Kit garuntees you all of the pieces you need for a safe, secure, and reliable Swing Gate System. See all of our Complete Swing Gate Opener Kits.
How do I choose the right swing gate opener kit for my gate?
Check your gate's weight and length first. Choose a single or dual kit based on your needs, then decide between AC power, solar, or low voltage. Learn about all of our Swing Gate Options.
Can these gate opener kits be installed without a professional?
Yes, most are DIY-friendly with basic tools. If your gate swings freely and you're comfortable with light electrical work, you can handle it yourself. See our Installation Guides Page.
What's the difference between a solar and low voltage swing gate opener?
Solar: Best for remote areas, powered by a panel and battery.
Low Voltage: Uses a transformer with AC power; charges faster, works better in shaded locations.
| SKU | 108714151.5SS |
|---|---|
| Manufacturer | FAAC International Inc. |

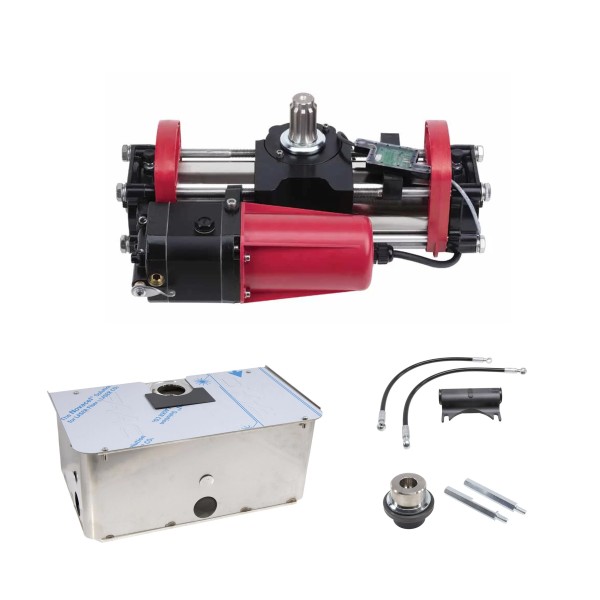

| Kit Includes | Conductor Cable(s), Hydraulic Manual Release, Junction Box, Operator, Splined Shaft Collar w/ Mounting Bolts, Support Box |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
UL325 Compliant
Need information on UL325 compliance? Check out our guide to UL325 safety standards here!Learn More
|
Class I, Class II, Class III, Class IV |
| Operator Type | Swing Gate Operator |
| Actuator Voltage | 24 DC |
| Color | Stainless Steel |
| Max Gate Length | 16 ft. |
| Max Gate Weight | 1,760 lbs. |
| Max Opening Angle | 100 Degree Opening |
| In-Ground Housing | Stainless Steel Housing |
| Operator Kit Type | Dual Gate Opener Kit |
| Operator Series | S800H SBW |
