FAAC Complete Range - Barrier Gate Openers
The FAAC barrier arm gate openers utilize a mechanical arm that acts as a barrier to allow traffic to enter in an out of designated areas. These gate operator systems are ideal for medium-high traffic complexes that require vehicle access control. Fastgateopeners offers a wide variety of barrier arm gate operators for different applications. In this buyer's guide, we'll break down the range of options that are available to help you narrow down the investment that is right for you.
B680H VS B614 FAAC Barrier Openers - Basic Overview & Comparison

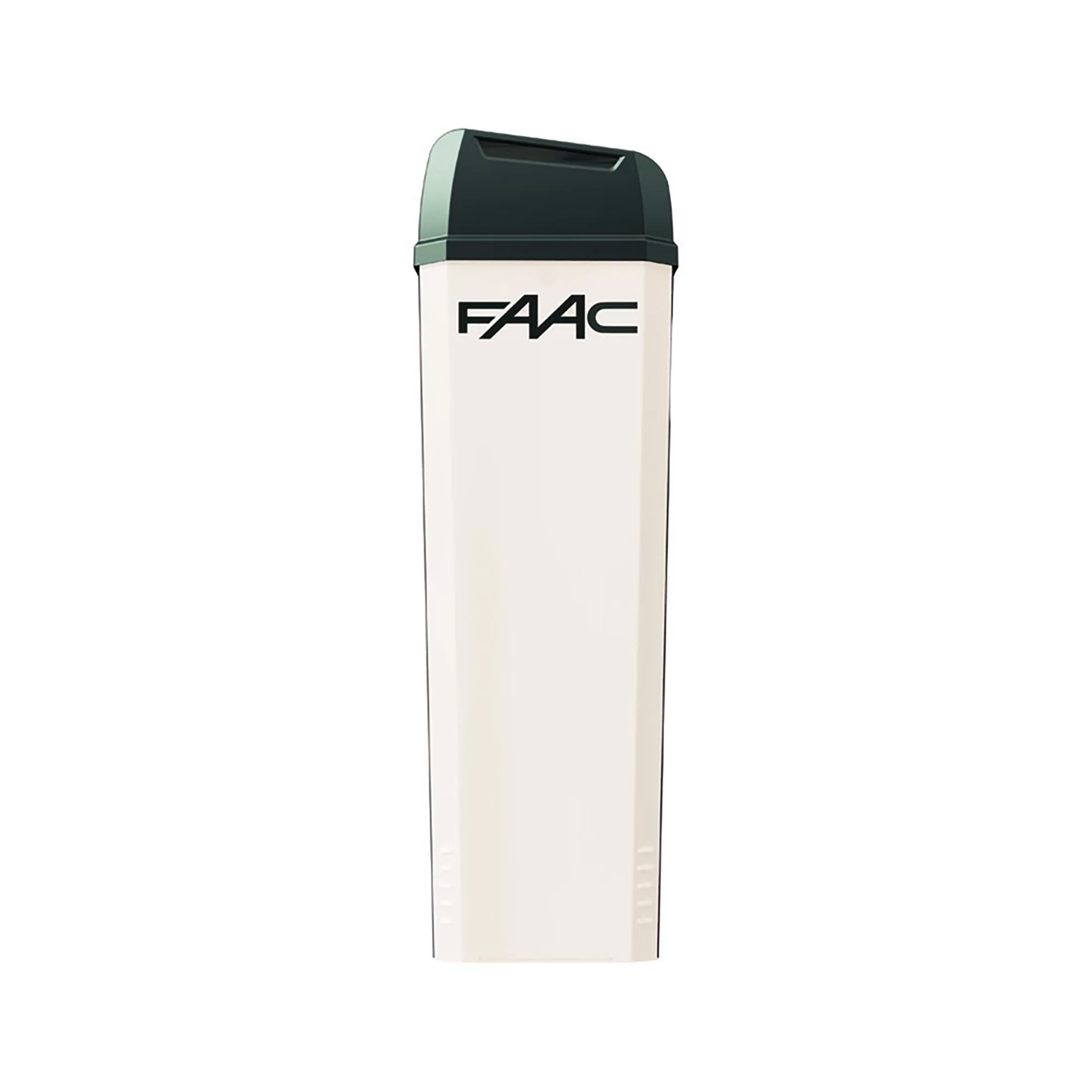

The two main models of barrier gate openers that FAAC manufactures are the B614 model and the B680H model. The automatic barrier B614 is a lighter ideal for condominium or residential applications such as gated communities, apartment complexes, or small parking lots. This gate operator is simple to install and is compatible with multiple barrier arm lengths up to a maximum lane opening width of 12 feet. Being a cost effective solution, the B614 works great in areas where traffic is lighter and the space is smaller.

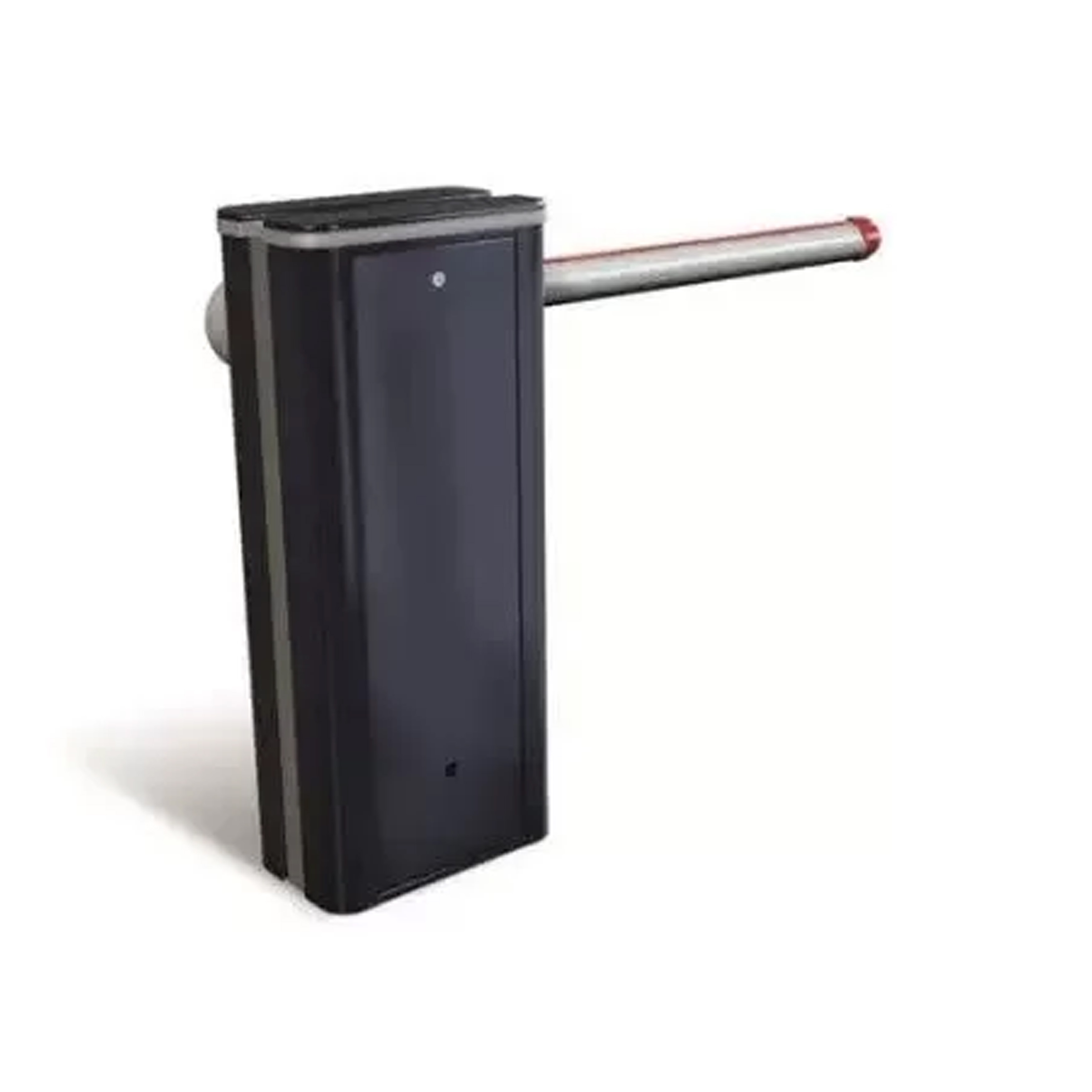

The B680H FAAC automatic barrier gate is built for more heavy-duty use and works great for residential, commercial, and even industrial settings. With the brushless motor and higher voltage, this model features high durability with the ability to work through over 2,000,000 continuous cycles without the need for maintenance. If the space you're working with has higher traffic or a bigger opening, this operator is the ideal option. The B680H is compatible with gate arms measuring from 7.5 ft to 27.2 ft with an opening time ranging from 1.5 seconds to 6 seconds, (depending on the size of the barrier arm). This model also features a wider variety of options including finish color and type of barrier arm.
| Feature | FAAC B614 | FAAC B680H |
|---|---|---|
| Ideal Use | Residential / Light Applications | Commercial & Industrial / Heavy Applications |
| Maximum Lane Width | 12 ft | 26.2 ft |
| Opening Time | Under 2 Seconds | 1.5-6 Seconds |
| Barrier Arm | Rectangular With Rubber Edge (One Piece) | Round With Safety Edge (One Piece or Sectional Options) |
| Safety Features | Max Anti-Crushing Safety | Reverse-on-Obstacle Safety |
| Adjustable Speed? | Yes | Yes |
| Different Finish Options? | No | Yes |
| Power Supply | 115 Vac 10% 50/60 Hz | Switching: 100-240 Vac 50 (60) Hz |
| Motor Type | 24V Brushed | Brushless 36 Vdc + Hydraulic |
| Power Draw | 165 W | 240 W |
| Torque / Current | 300 Nm | 1.1 A (at 230 V) |
B614 Barrier Operator Options
For applications that are for light-use such as residential properties and light commercial parking lots, the B614 is a viable option. Key features include anti-crushing safety and an integrated control unit to allow for easy maintenance and programming. There are two options that are available with this model: one that includes the body only, and one that includes the arm mounting bracket and balancing spring. Please note that the barrier arm itself is NOT included with either option and must be purchased separately.
Features:
- Easy To Install
- Compatible With Multiple Barrier Arm Lengths
- Helps Regulate Traffic Flow Into And Out Of An Area
- Unites Three Core Components Of A Barrier Arm Operator System
- Includes B614 Automatic Barrier Arm Operator, Barrier Arm Bracket And Balancing Spring
680 S VS L Arm Options + Different Color Options
The S style barrier arms are one whole piece and have a higher limitation of size as they are only available for openings up to 16.5 ft. The L Style barrier arms are created in sections and are available for openings from 16.4 ft up to 26.2 ft. All barrier arms feature protective rubber on the bottom side and are manufactured in a way that lights will fit on the top side if needed. The optical design of the barrier arms allow them to work well even in windy areas. As reiterated above, the B680H model is ideal for commercial and industrial applications where heavy traffic or wider opening are expected. Again, barrier arms are NOT included with these kits.
S Style Features
- Barrier Arm is One Piece
- Made for Openings Up to 16.5ft
L Style Features
- Barrier Arm is Separate Pieces
- Made for Openings From 16.4 ft to 26.2 ft
B680H Kits Include:
- B680H Operator
- Operator Cover (Different Color Options Are Available)
- Balancing Spring **Not Included In Stainless Steel Finish
- L Bracket **Not Included In Stainless Steel Finish
B680H S Style Barrier Openers
Red B680H S Style Blue B680H S Style Gray B680H S Style White B680H S Style Stainless Steel B680H S StyleB680H L Style Barrier Openers
Red B680H L Style Blue B680H L Style Gray B680H L Style White B680H L Style Stainless Steel B680H L StyleHave Questions? We're Here to Help!
With this buyer's guide, we hope you have enough information to make a choice on your barrier gate arm investment. However, we understand it's a big decision and the options may be confusing. If you have any additional questions or would like to chat with a representative about the options you read here, please feel free to reach out to our expert sales team. We look forward to hearing from you and setting you up with a FAAC barrier arm gate operator!
